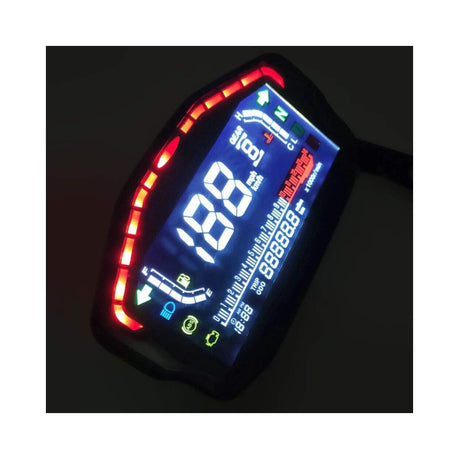

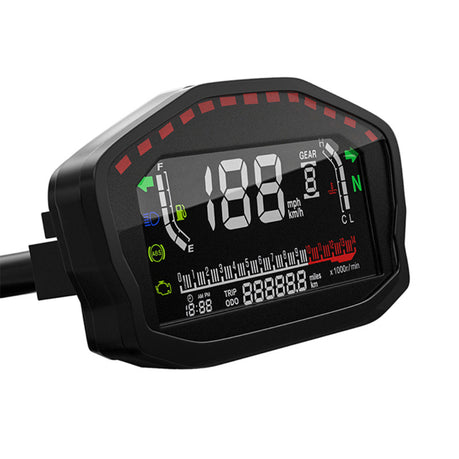

Aftermarket Motorcycle Multi-Function LCD Speedometer (#3)

Feature:

Material: ABS material
Input voltage: DC12V

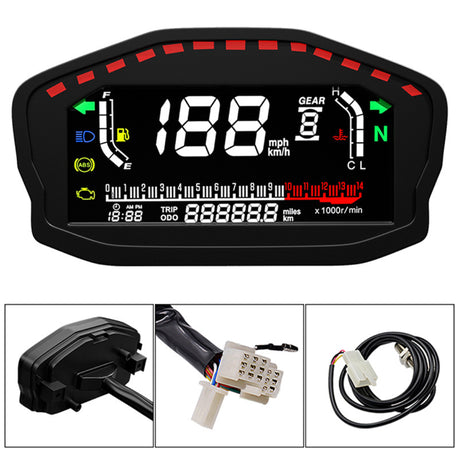

Wiring length: Around 58cm

Universal digital tachometer with rpm gauge and many other display functions

Important: Installation requires knowledge of the motorcycle's electrical system, in case of doubt have it installed by a professional workshop/ Auto Electrician

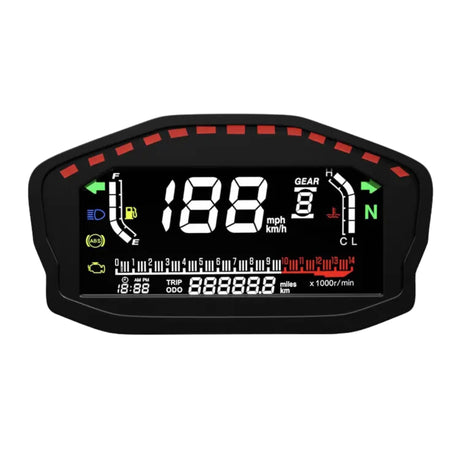

Functions LCD Display:
Rev counter up to 15.000 rpm
Trip distance up to 999,9 km or miles
Odometer up to 99.999,9 km oder miles
Fuel gauge
Clock
Gear indicator
Water temperature

LED light indicators:
Indicator lights: right and left
High beam
Neutral indicator
Engine fault

Short press the button to switch between total (ODO) and subtotal (TRIP)

In the total (ODO) interface, press and hold the button for 8 seconds to switch between metric and inch systems. The default is in the metric system. After switching, it can be saved even if the power is completely cut off

In the subtotal (TRIP) interface, press and hold the button for 4 seconds to clear the subtotal

In the total (ODO) interface, press and hold the button for 4 seconds to release, enter the clock setting, and the hour will flash, the second will not flash, short press the button to increase 1, and long press the button for 3 seconds to switch to the minute second flashing If the point does not flash, press and hold the button for 3 seconds to save and exit or automatically save and exit, without operation for 10 seconds

Oil Light: When the oil alarm light is on, switch to the total (ODO) interface, and press and hold the button for 8 seconds, the oil light will go out, and the next round of counting will begin

Clock adjustment: 12-hour system, cold boot at AM10:00, in the total (ODO) interface, long press the button for 4 seconds to release, enter the clock setting, the hour flashes, the second does not flash, short press the button to increase 1, Press and hold the button for 3 seconds to switch to the minute flashing, the second point does not flash, and then hold down the button for 3 seconds to save and exit or automatically save and exit without operation for 10 seconds

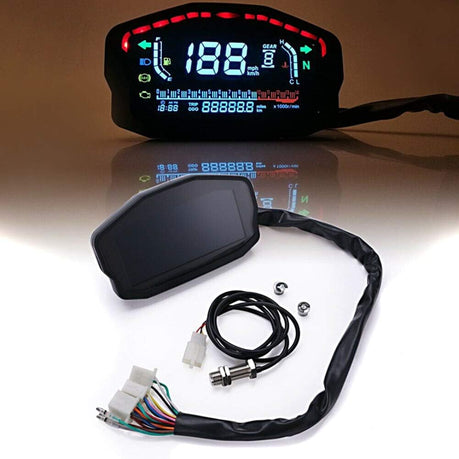

Sensor: Sensor, 4 magnets

4 round head:
Grey: 6 gears,
12 negative control,
Liquid crystal display;
Green and white: water temperature signal

Fitment:
Universal
Aftermarket Custom fitment
Knowledge of motorcycle Electronics or Auto-Electrician (Professional fitment might be needed)
