Automotive 12-Way Blade Fuse Block/ Circuits Panel #2

Automotive 12-Way Blade Fuse Block/ Circuits Panel #2

Application: 12V/24V
Series: with 2 Positive Power Inputs Negative Bus
Features: ATC/ATO (middle size) fuses

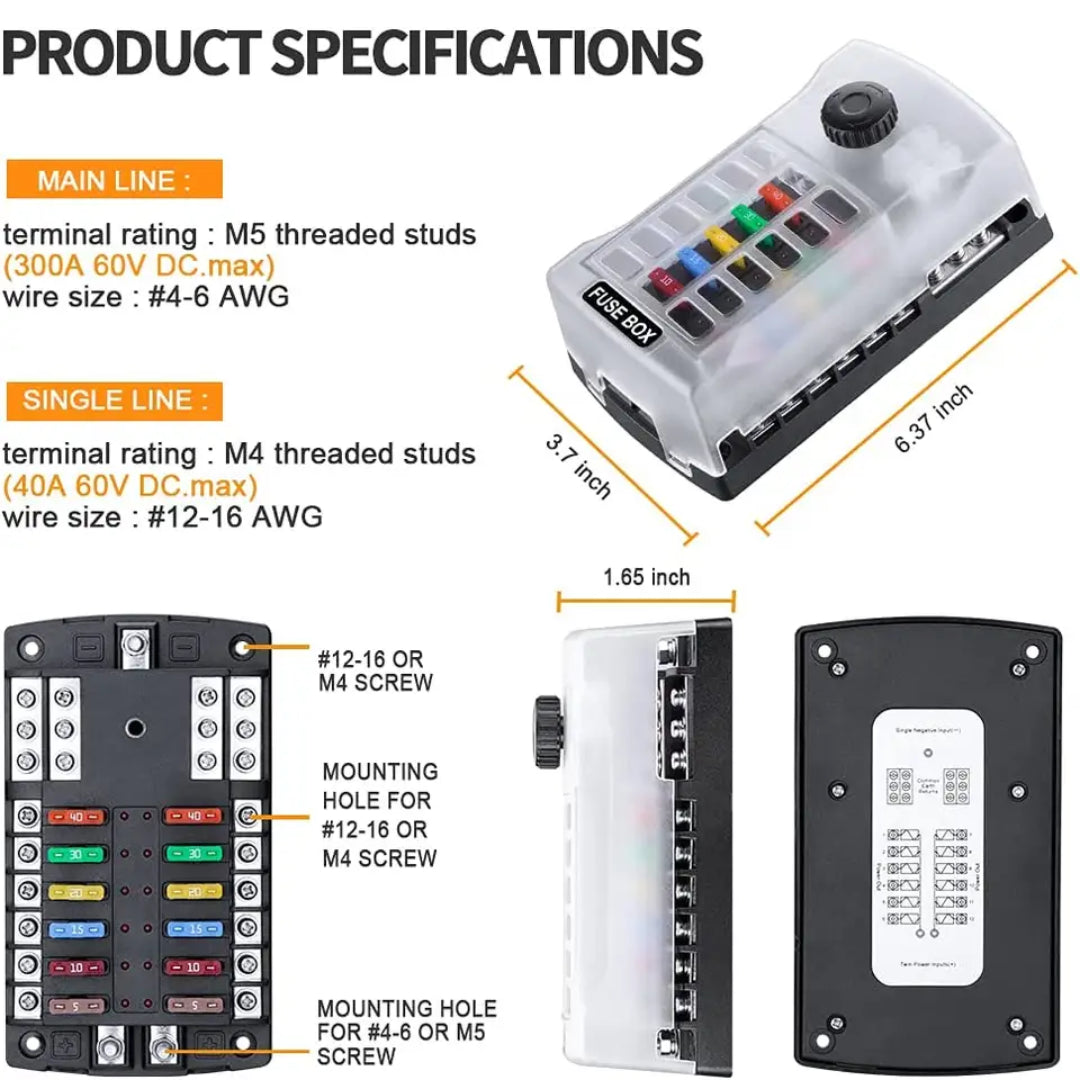

Package / Case: Transparent plastic cover with screw nut
Fuse Type: ATO Blade Fuse
Product type: Blade Fuse Box
Rating Voltage: 60V DC
Rated current: Max. 40 Amp per circuit & 300 Amp per panel

Aftermarket 12-Way Blade Fuse Block

Fitment:
Aftermarket universal custom
Car, Truck, Boat, Marine, RV etc.

-Upgraded 12-Way Blade Fuse Block accepts standard ATC/ATO(middle size) fuses. 12 Circuits with Dual Positive Power Inputs and the Negative Bus to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 60V DC operating voltage. Max. 40 Amp per circuit & 300 Amp per panel.

-Red LED warning light will light up immediately when the corresponding fuse is blown. It is both safe and easy for you to check and replace the blown fuse. Made of environment-friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant

-Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot outdoors. Spare fuse slots design, convenient for the storage of spare fuses.

-This 12 Circuit Fuse Block is widely used in cars, trucks, boats, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of the fuse box can be connected to any circuit of electrical appliances. For example car dim lights, auto headlights, width lamps, fog lamps, warning lights, car refrigerators, car chargers and car fans, car TV.etc.

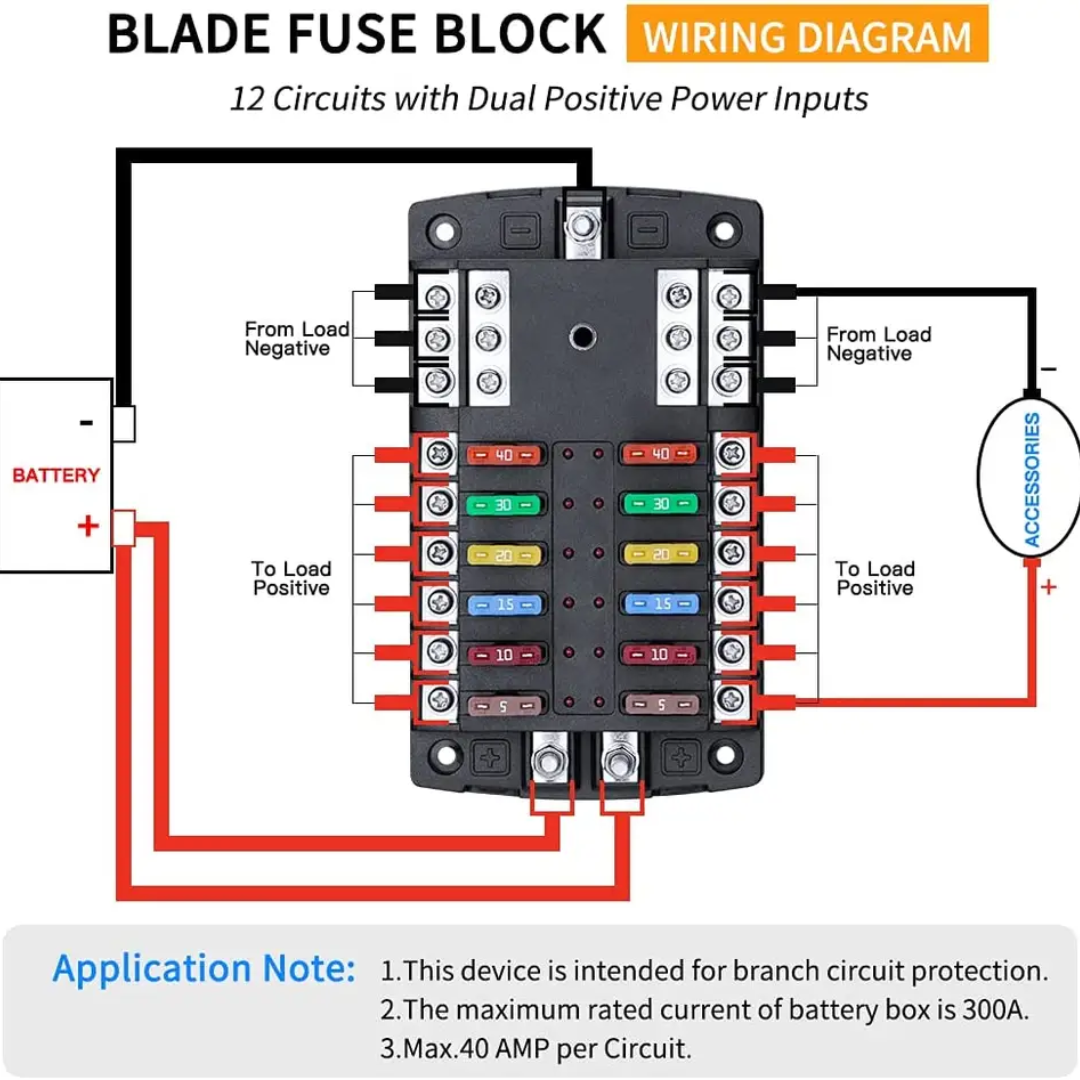

-12 Circuits with dual positive power inputs:
Max. 60V DC operating voltage. Max. 40 Amp per circuit & 300 Amp per panel.

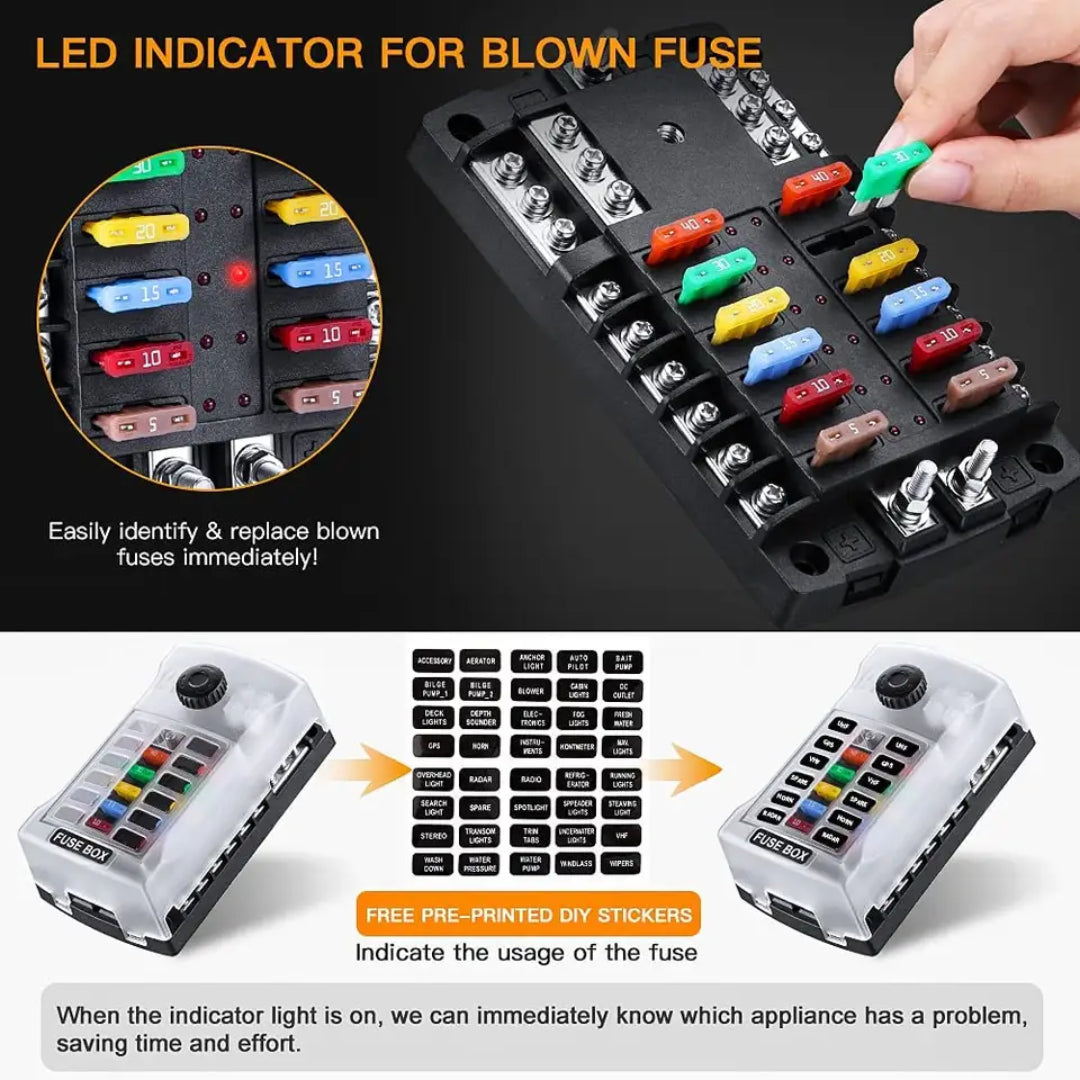

-LED Indicator for Blown Fuse
Easily identify & replace blown fuses immediately

-Spare fuse slots
Convenient for the storage of spare fuses

-Stickers included
Indicate the usage of the fuse

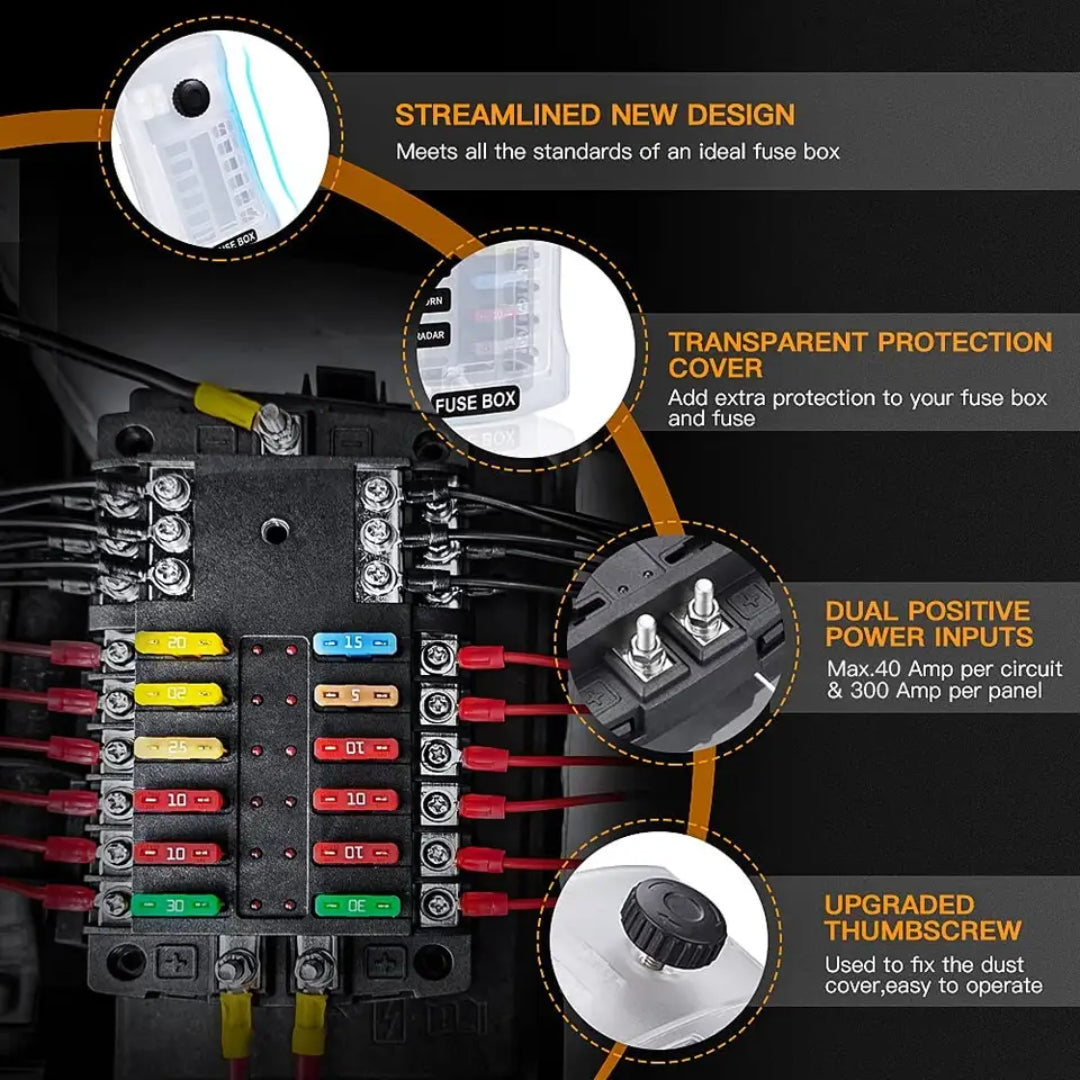

-Thumbscrew
Used to fix the dust cover, more convenient and durable than push latch.

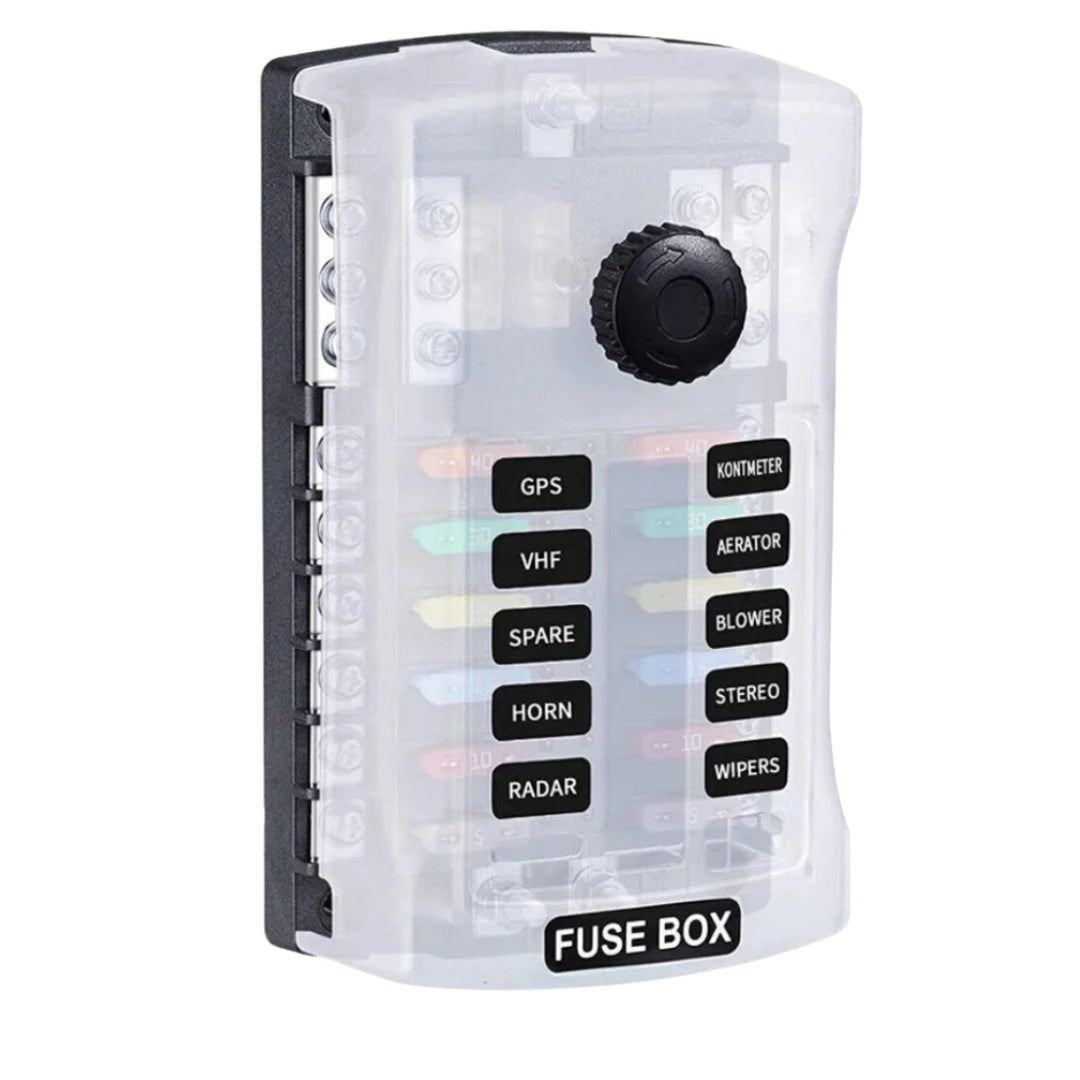

Transparent Plastic Cover
Add extra protection to your fuse box and fuse.
Avoid safety hazards such as short circuits caused by conductive dust entering the fuse box.
