Automotive Solar Tyre Pressure Monitor System (4-Sensors)

Automotive Solar Tire Pressure Monitor System (4-Sensors)

Material: ABS Plastic & Metal
Color: Black
IP67 waterproof
Model: T680 WF
Input Voltage: DC 5V

Sensor Parameter:
Working Temperature:(-40 ~+105 )
Storage Temperature:(-40 ~+120 )
Pressure Range:0~116psi 0~8bar
Pressure Precision: 1.5PSI 0.1bar
Temperature Precision: 3
Transmitting Power:<10dbm@50
Transmitting Frequency:433.92MHz
Battery Life:>2 years
Size:Height:15mm;Diameter:23mm

The display Screen has a Solar charge with an internal battery
Bar Pressure
Alarm
Temperature
Screw-on valve Sensors

NB: Please turn on the monitor first, and then install the sensors; otherwise there is no display
The tire pressure will be displayed
The tire pressure will be displayed after 5-10 minutes of driving
This model External TPMS can not be used/replaced for vehicle models with built-in TPMS

Fitment:

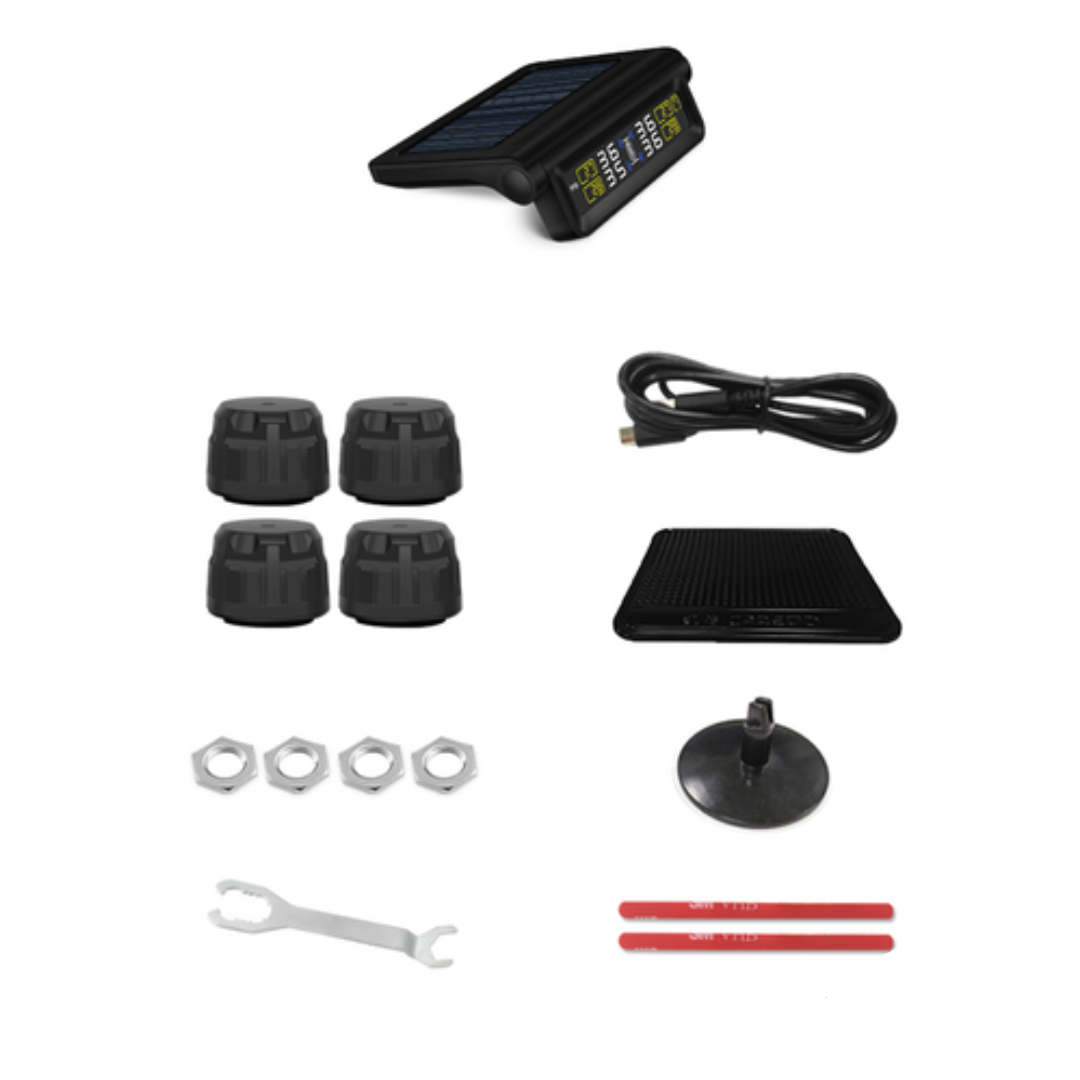

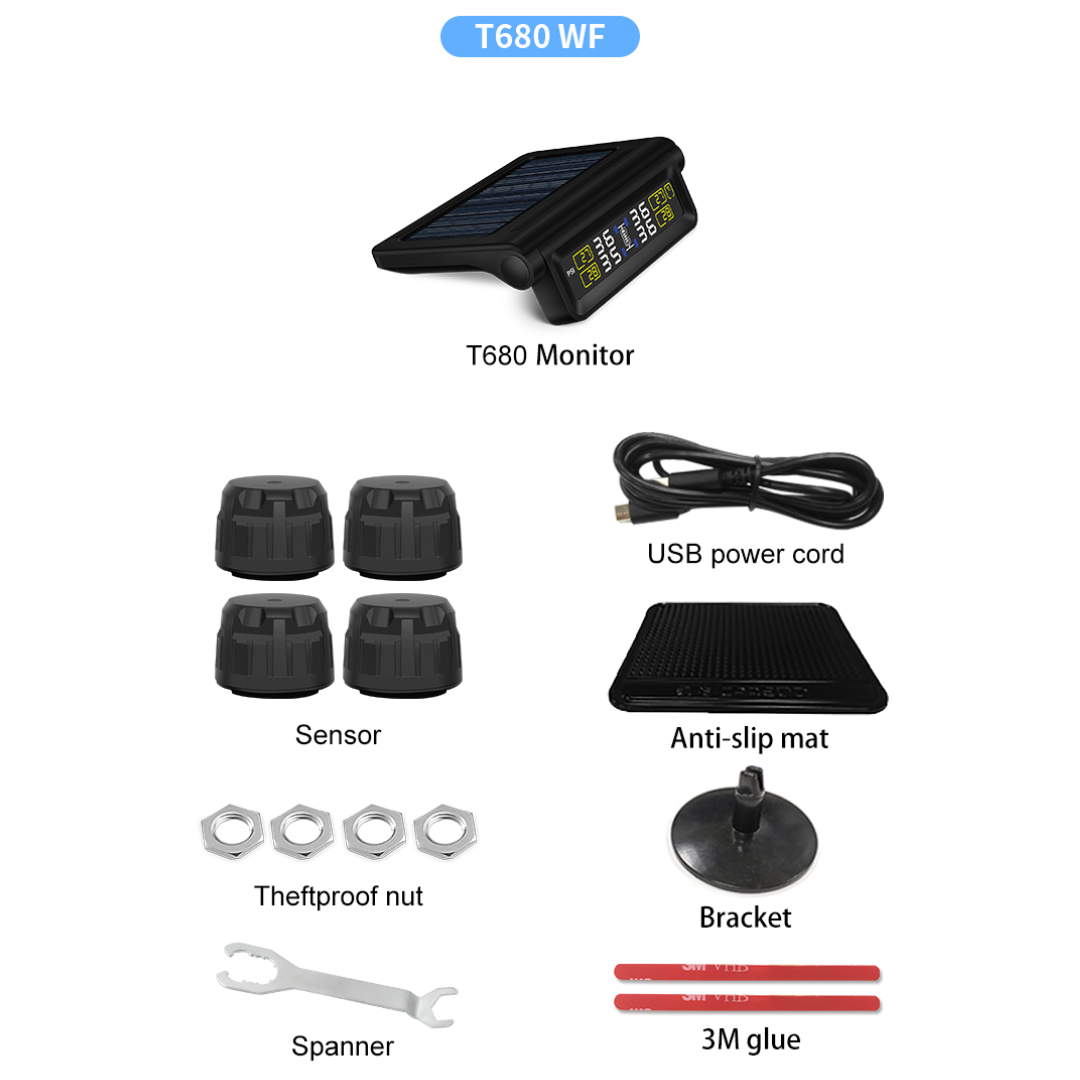

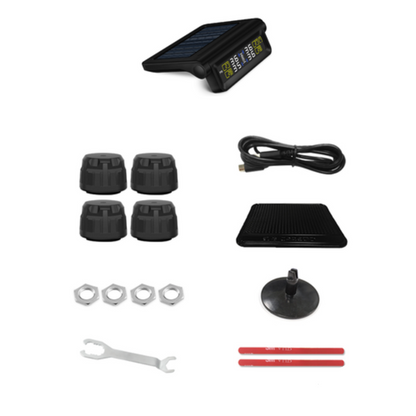

Universal (4-Sensors)
Aftermarket TPMS

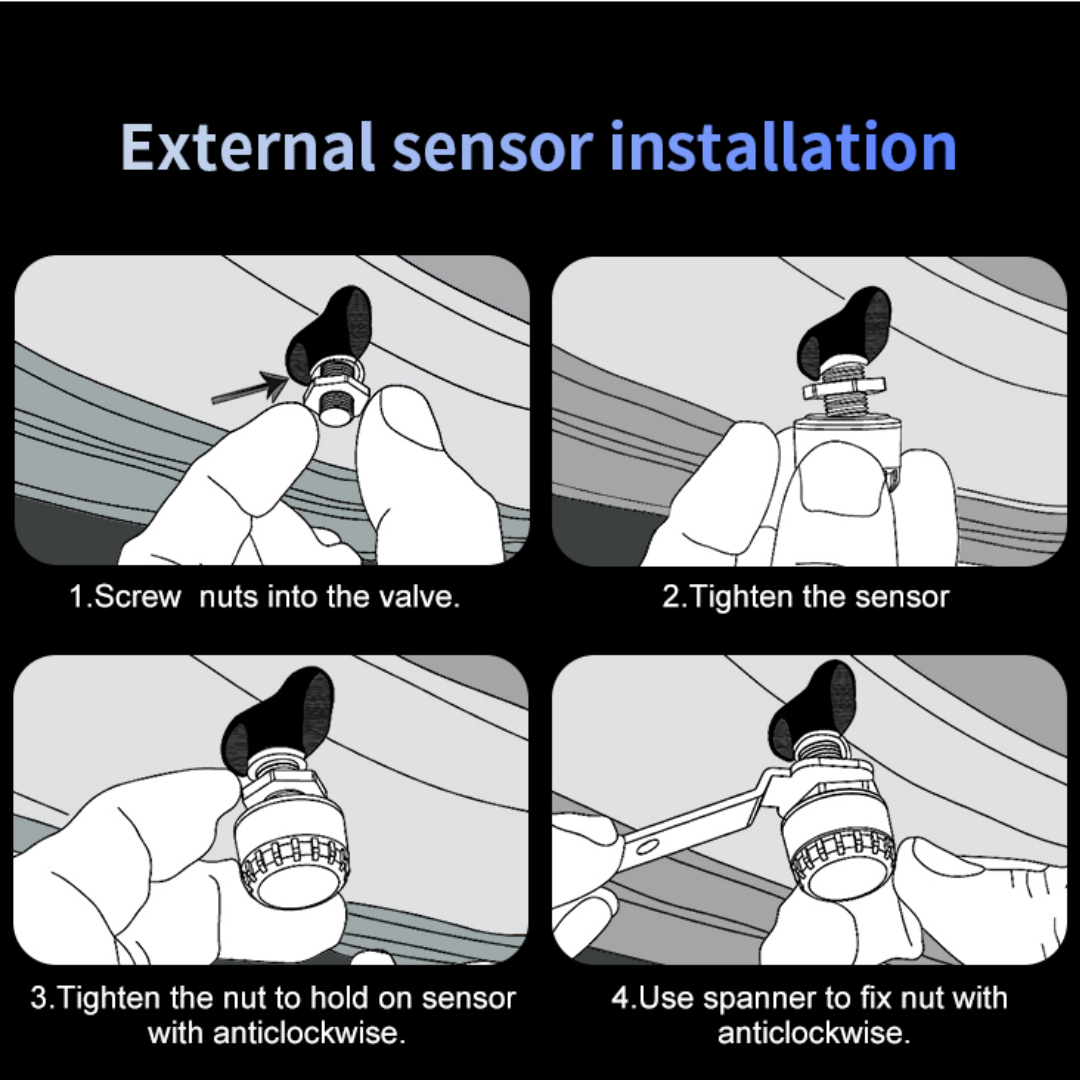

Fit the sensors on the Tire Valves, external

With the TPMS, you can keep your Tires working within the specified pressure and temperature range

Main features:
TPMS can monitor tire pressure/temperature status in real-time, which will transmit real-time sound alarm and warning indicator light to remind you while you are driving
Use solar energy to get electricity, with 4 external sensors. The conversion rate of solar energy is as high as 20%. It takes only 5 hours to fully charge under strong sunlight.

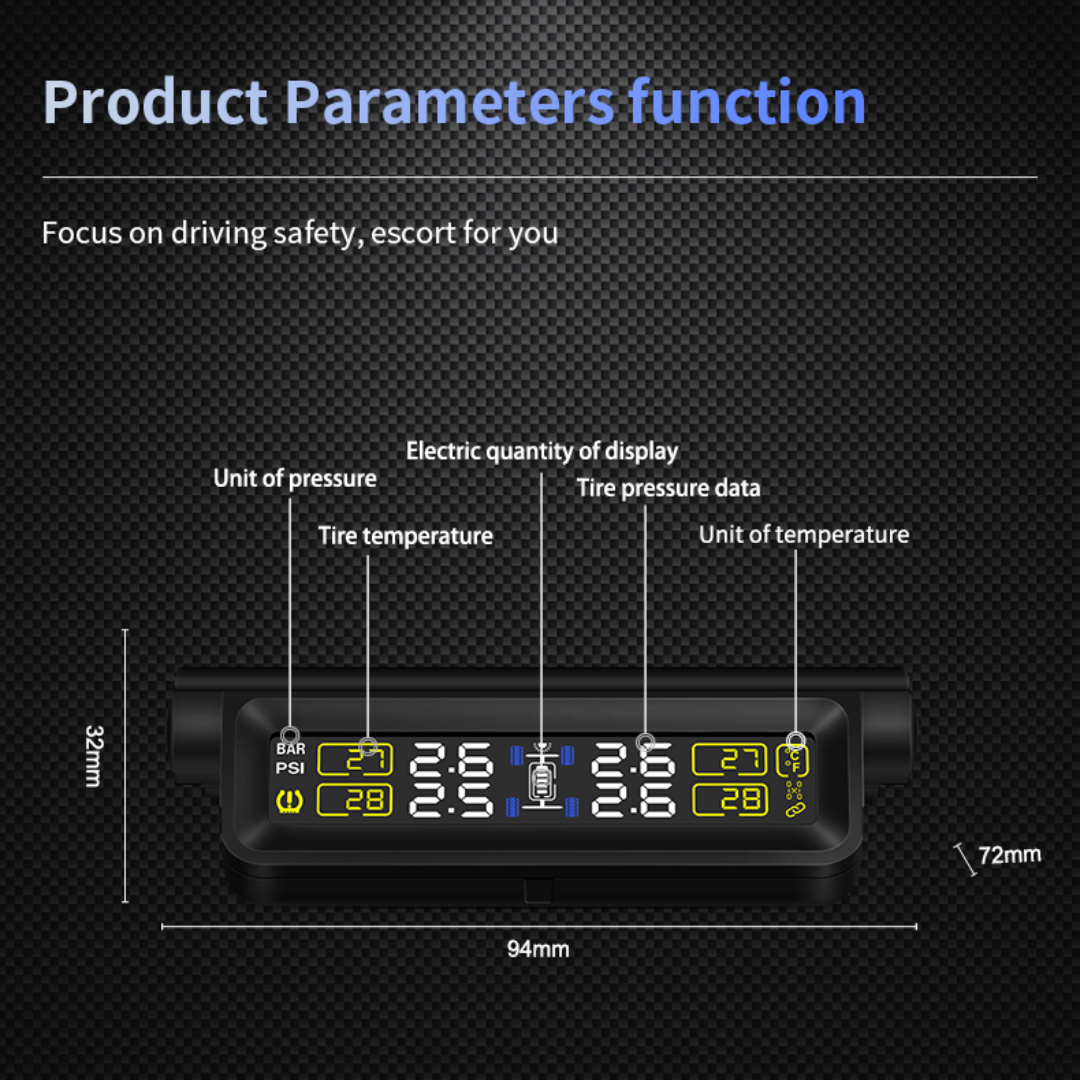

LED panel, with extra mini USB port for charging. Two kinds of installation of monitor, Bracket, and 3M stickers, wide field of view, safe driving. The display angle can be adjusted to 180 degrees

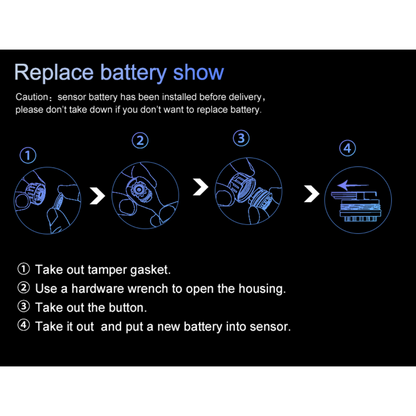

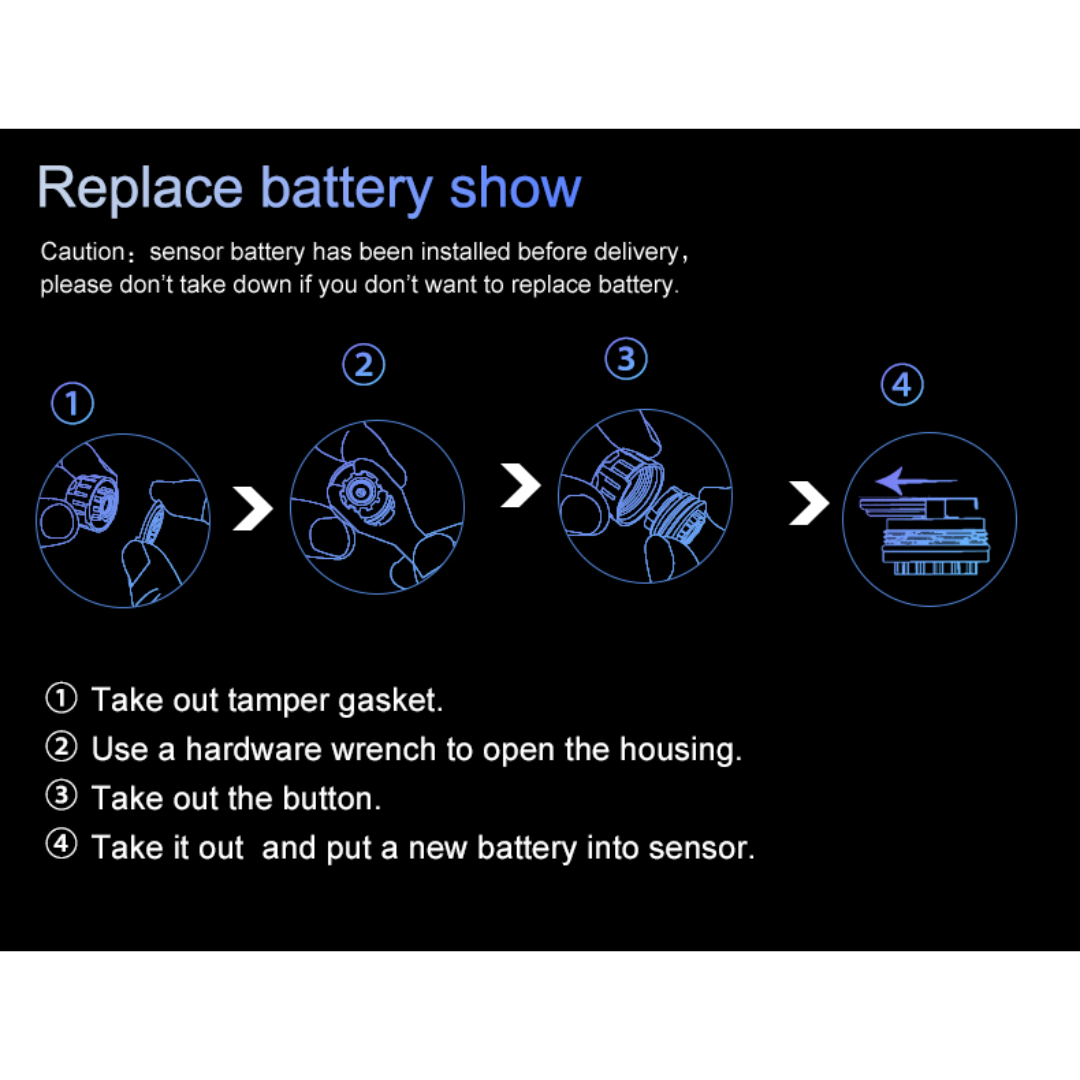

The sensor adopts a Japanese Panasonic battery, a wide temperature type so that the sensor can work normally at minus 20 degrees, it is not easy to wear out, is stable and durable, and battery life can last for around 2 years
The battery capacity of the monitor is 800mAh.USB Charging for about 3 hours then can be charged fully.

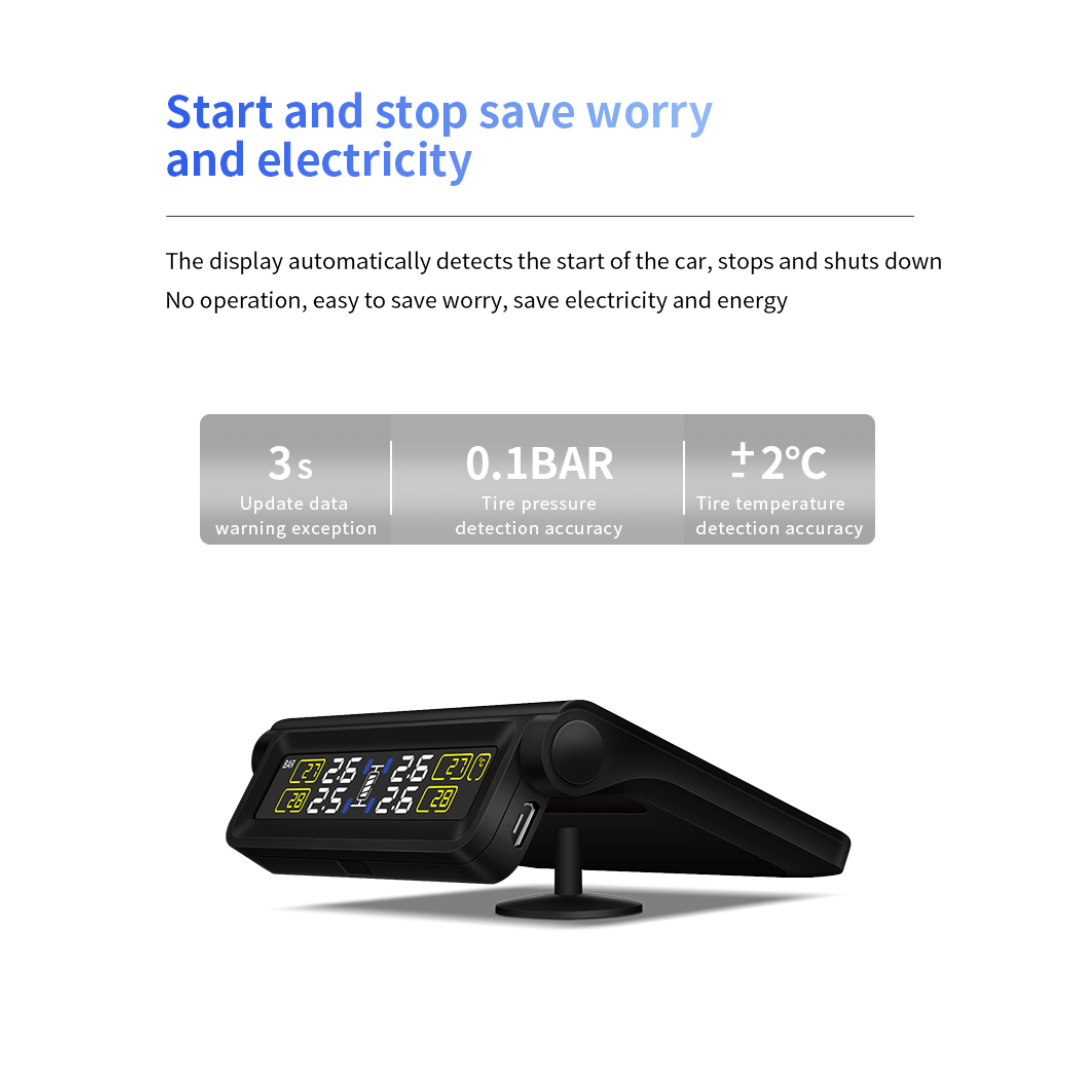

Automatic Adjustment Of Backlight And Automatic Sleep: Monitor Can automatically adjust the display backlight according to the strong and weak light environment to help clear reading. After the vehicle stops running for 10 minutes, it enters the sleep energy-saving mode, and automatically wakes up after starting up, using less power and longer time.

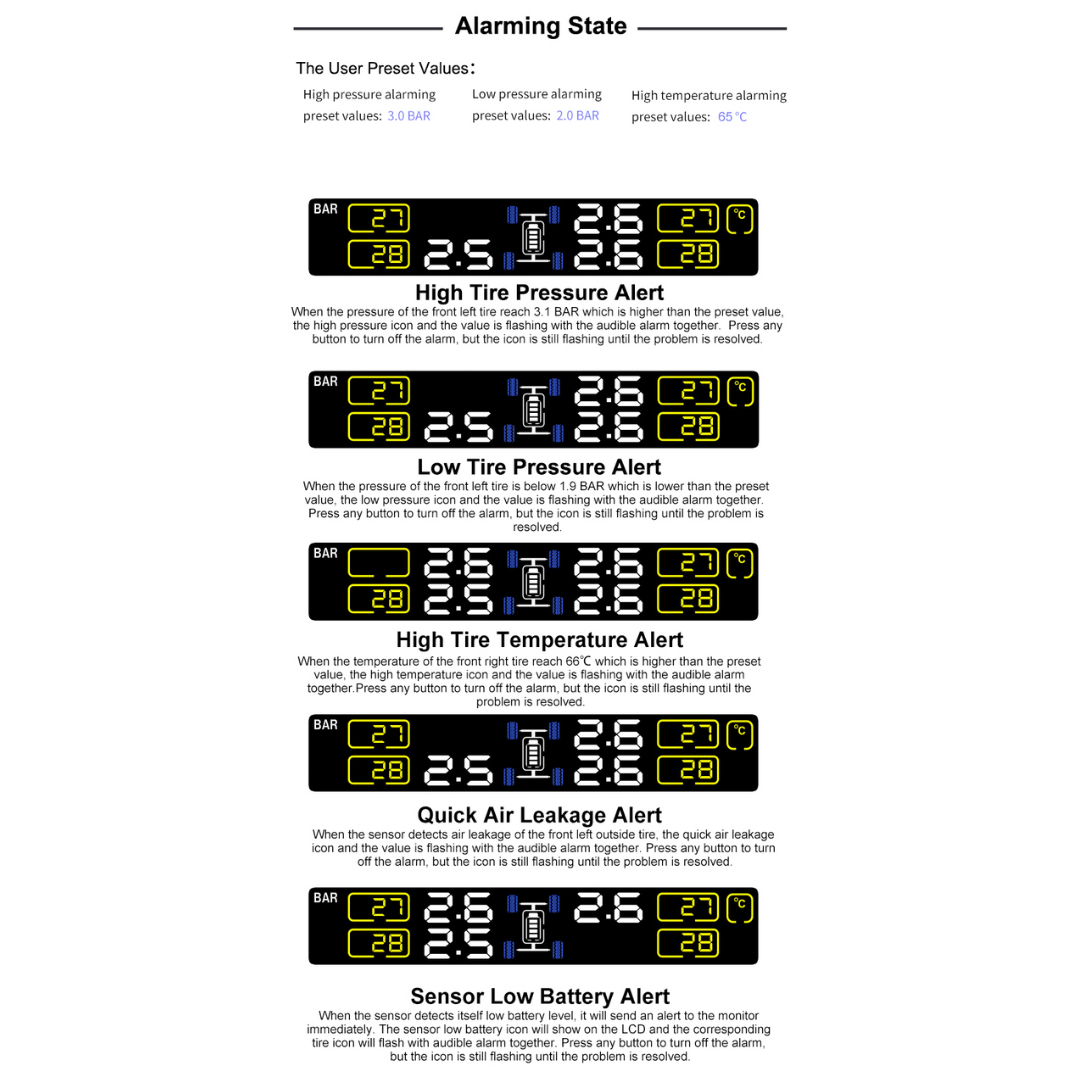

6.6 Alarm Modes and Real-time Monitoring: Careud Rv Tire Pressure Monitoring System Provides 6 Alarm Modes (Including High / Low-Pressure Alarm, High-Temperature Alarm, Air Leakage Alarm, Sensor Battery Low Power Alarm and Vehicle Battery Low Power Alarm), Real-time Monitoring, Immediately Provides Buzzer Alarm and Screen Red Flashing Prompt Under Abnormal Conditions, ensuring your driving safety.
With two pressure units PSI/ BAR and two temperature units / for options
Support tire position exchange function.
Sensor waterproof grade: IP67.
With Infineon chipset and anti-explosion battery.
