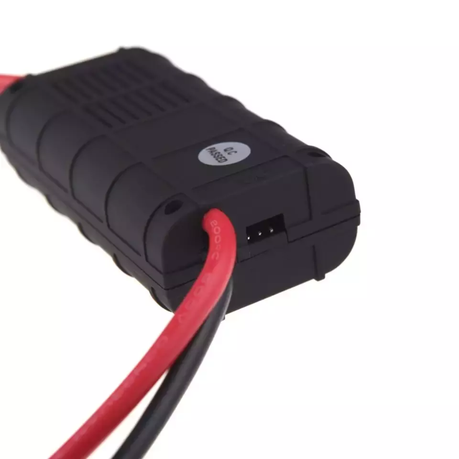

Digital DC Inline Watt Meter Power Analyzer for Portable 12V

Product name: 150A Digital DC Inline Watt Meter Power Analyzer with 50 Anderson Plug for Portable 12 Volt Solar Panels
LED Display Color: Blue
Size: 85X42X25mm
Weight: 82g
Display: LCD
OEM: Yes
Housing Color: Black

Features:
-Measures DC Amps, Amp-hours, Watthours, Volts and Watts
-Captures peak current, peak power, and minimum voltage (voltage sag) lasting a fraction of a second.
-Easily reset accumulated readings using external pushbutton switch.
-Rare combination of Voltmeter, DC Amp meter & Amp hour counting, Watthour and power analyzer features. Measures wide range of values not normally found on multimeters or low cost test equipment
-Powered by the measured circuit or connect an auxiliary battery or DC power source to provided 3-pin socket
-Reverse connection protection
-Powerful, 8 MIPS micro-controller
-Uses very low resistance (0.001 Ohm) shunt in negative (black wires) leads
-Small size and lightweight
-Full user's manual includes electrical tutorial

Example of applications:
-RV battery monitor and battery chargers
-Marine battery monitor and battery chargers
-Golf cart batteries and chargers
-Digital panel meter Ammeter
-Wheelchair batteries and chargers
-Solar Power batteries and chargers
-Wind Power generators, batteries and chargers
-Electroplating and metal plating Amp Hour measurement
-Ham Radio & Amateur Radio base station equipment, battery monitoring and chargers
-Electric bike batteries and chargers

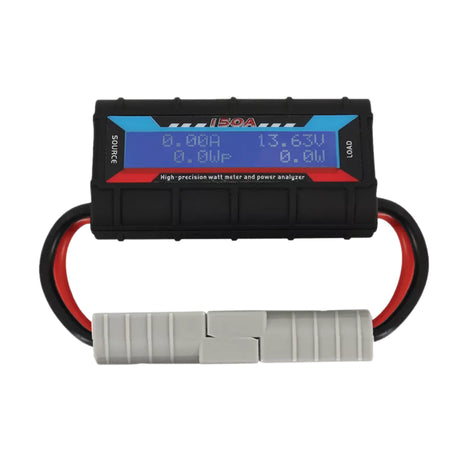

Measuring capacity up to 60V and 140A. 8 gauge wires with preinstalled SB50 Anderson Powerpole connectors. Bright blue backlit LCD display.
Measures 8 electrical parameters: Amps, Volts, Watts, Amp-hours, Watt-hours, Peak Amps, Minimum Volts (Sag), Peak Watts.
