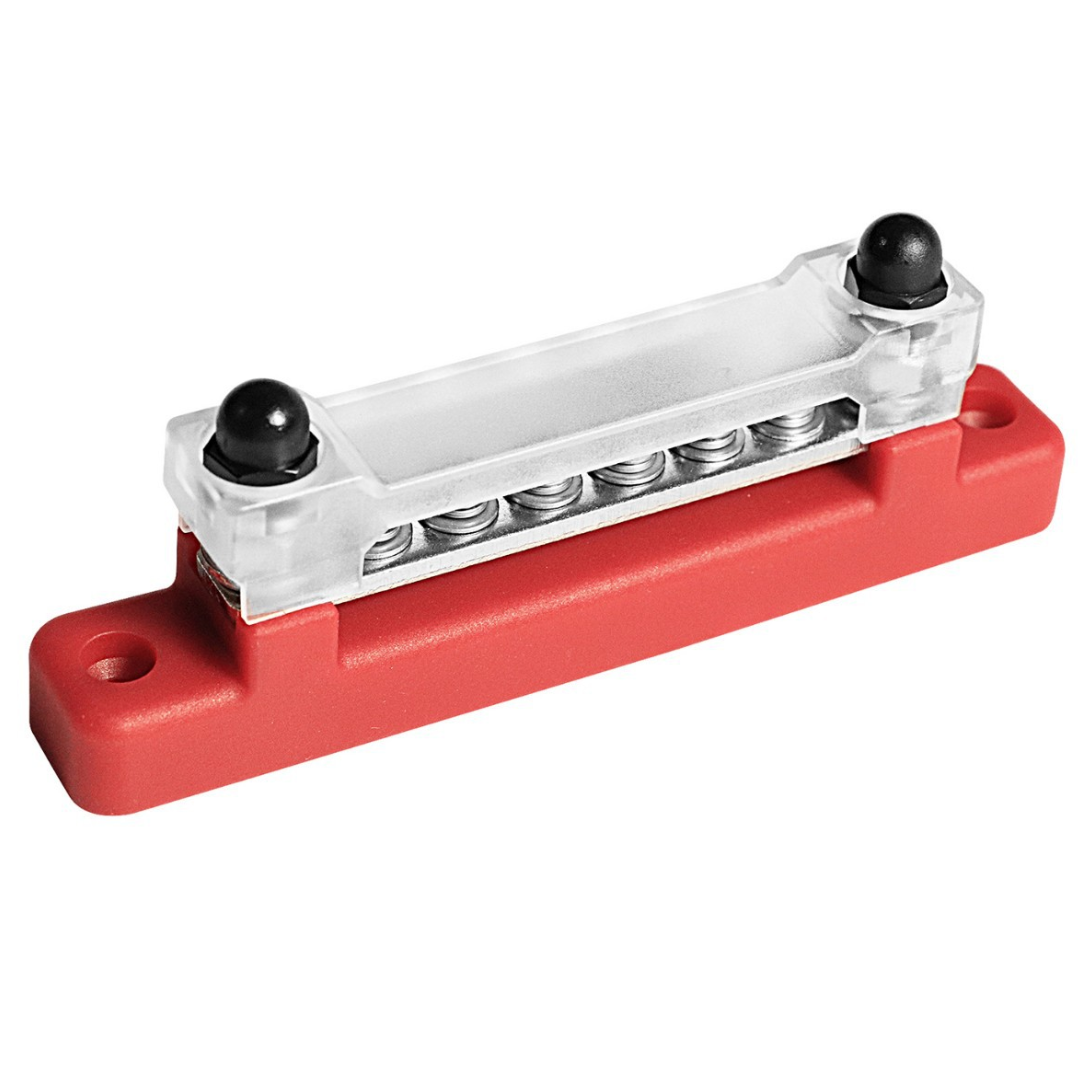

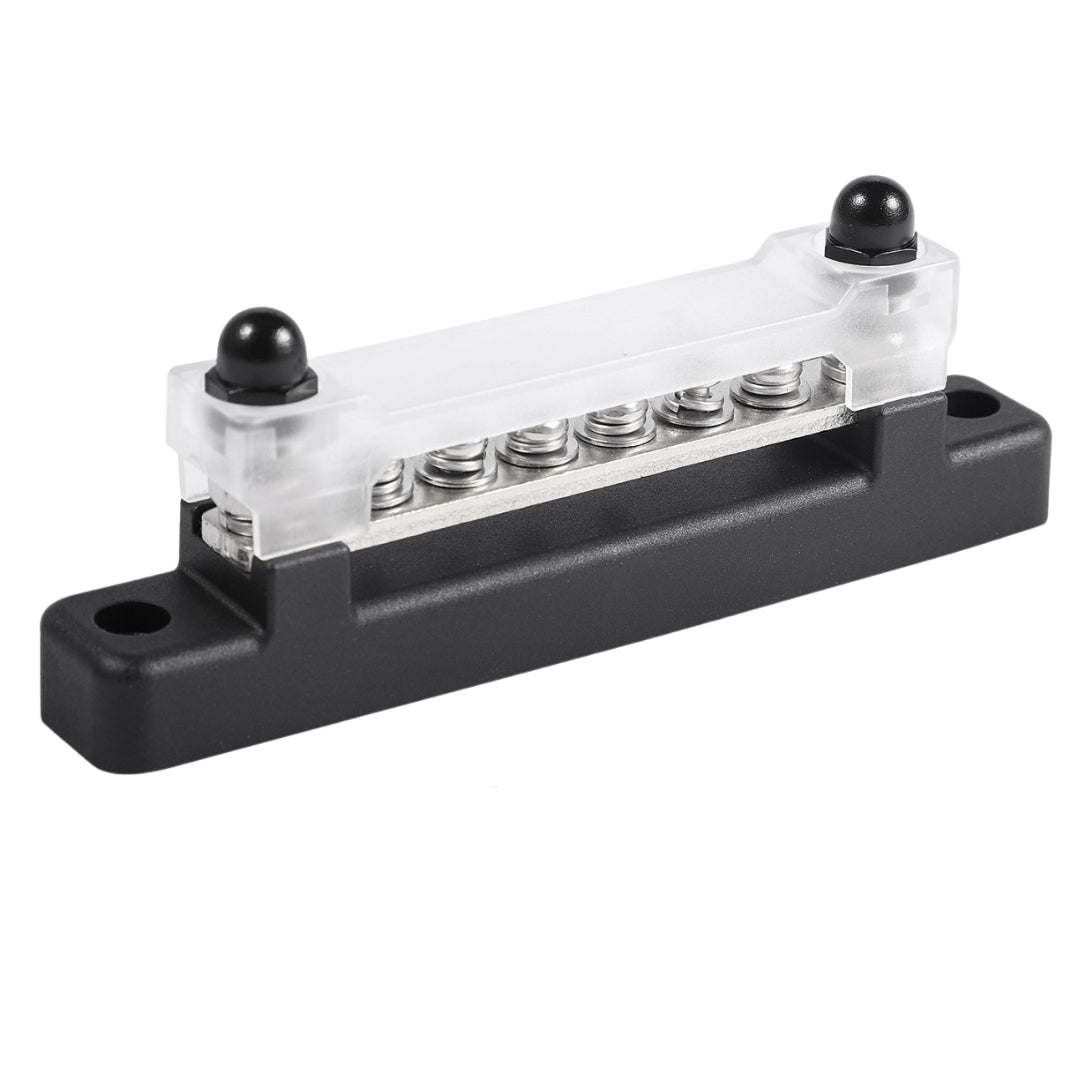

Ground Power Distribution Terminal Block (6 Terminal Bus Bar)

Ground Power Distribution Terminal Block (6 Terminal Bus Bar)

• Model Number: 6 Terminal Bus Bar
• Number of Contacts: 1 - 10
• Conductor Size: 11 - 20 AWG
• Type: Power Distribution
• Colour: Red or Black
• Product material: Nylon + transparent PC
• Connecting bar material: Copper bar
• Terminal Studs: M6x2
• Terminal Screws: M4x6

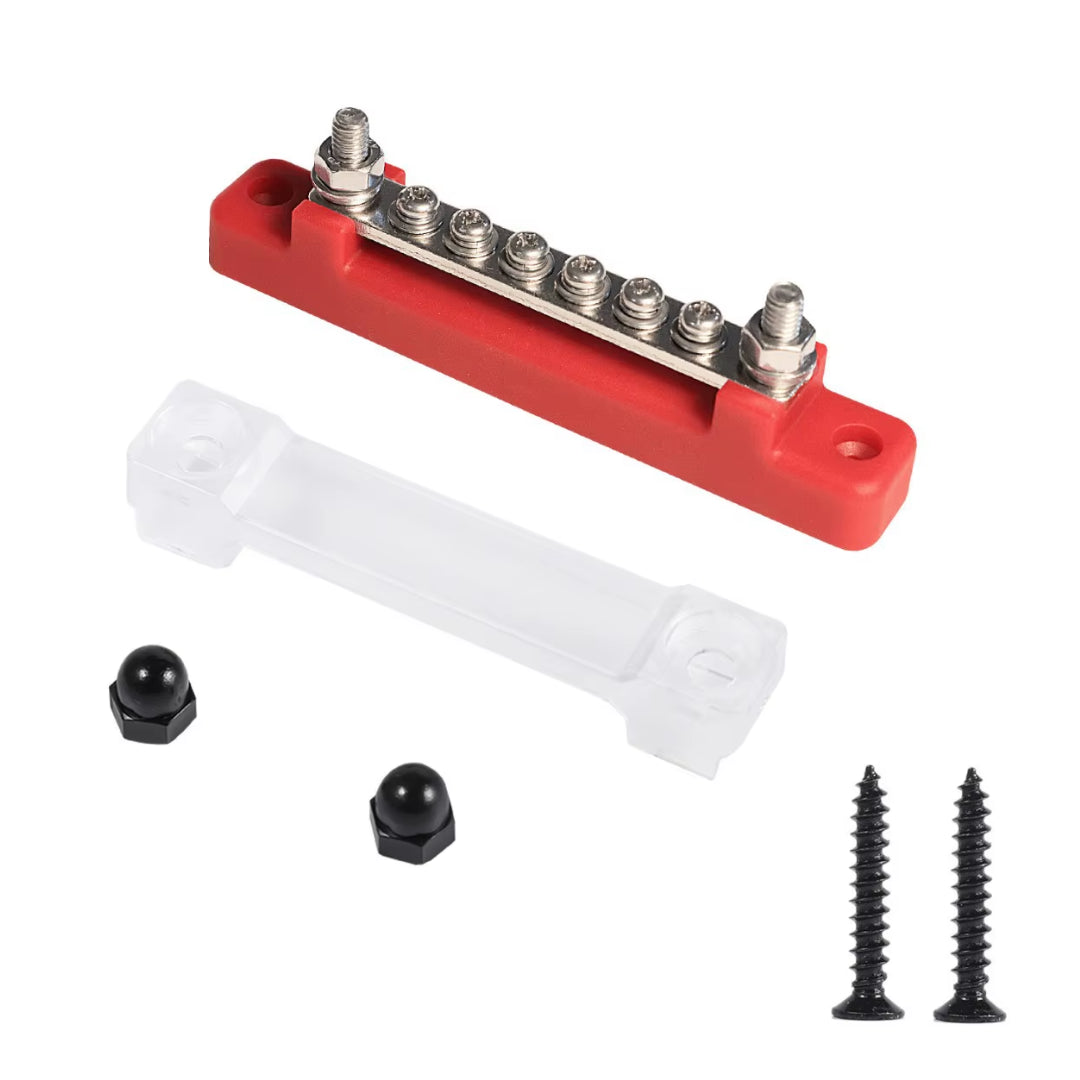

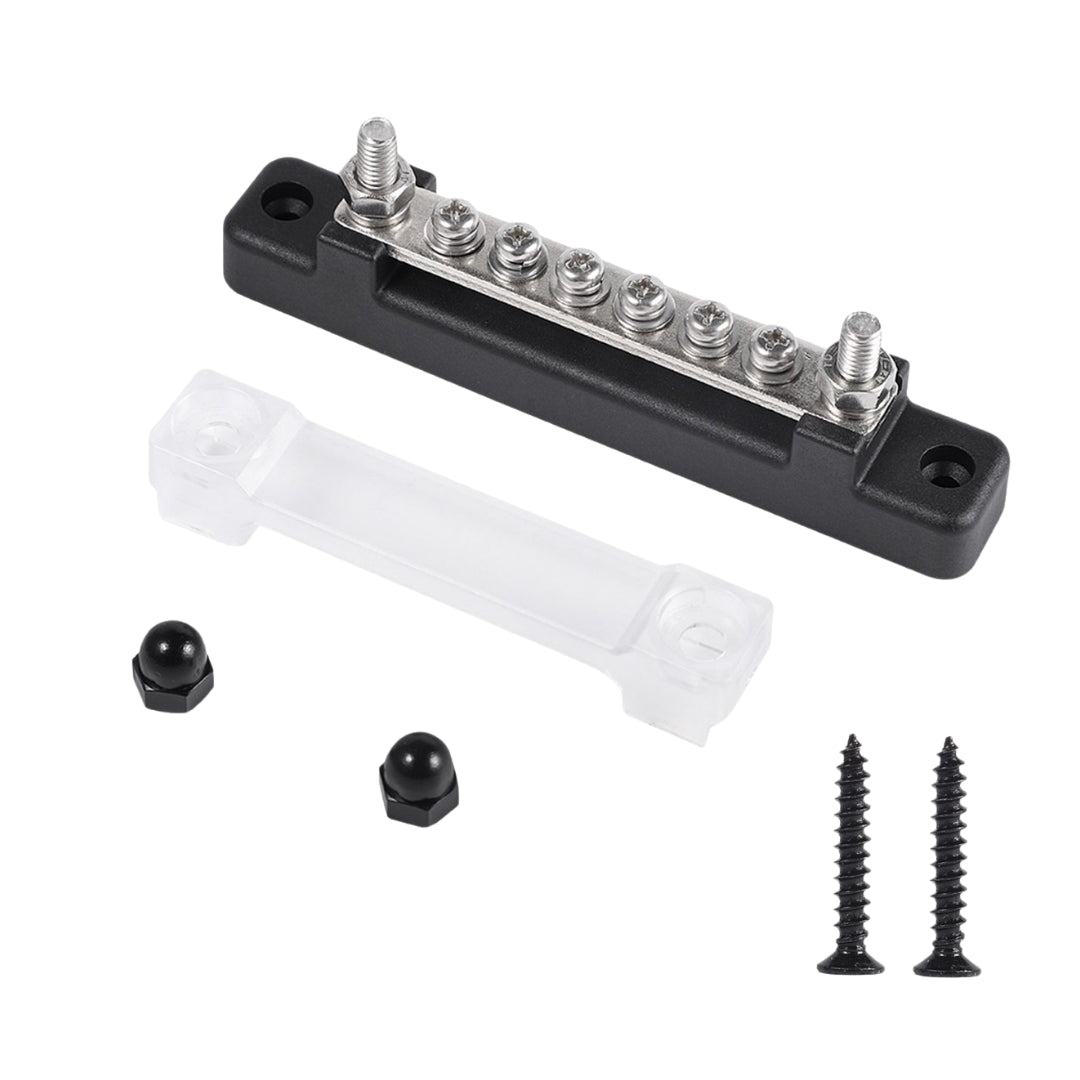

• Product Content: 1x 6 Terminal Bus Bar Kit
• Maximum voltage: 300V AC / 48V DC
• Rated current: 130A AC / 150A DC

Fitment:

Car, Trucks, RVs, Marine, Boats and other industrial equipment.

Main Parameters: This 6-terminal power distribution block with ring terminal and cover, a wide range of uses to protect your safety.

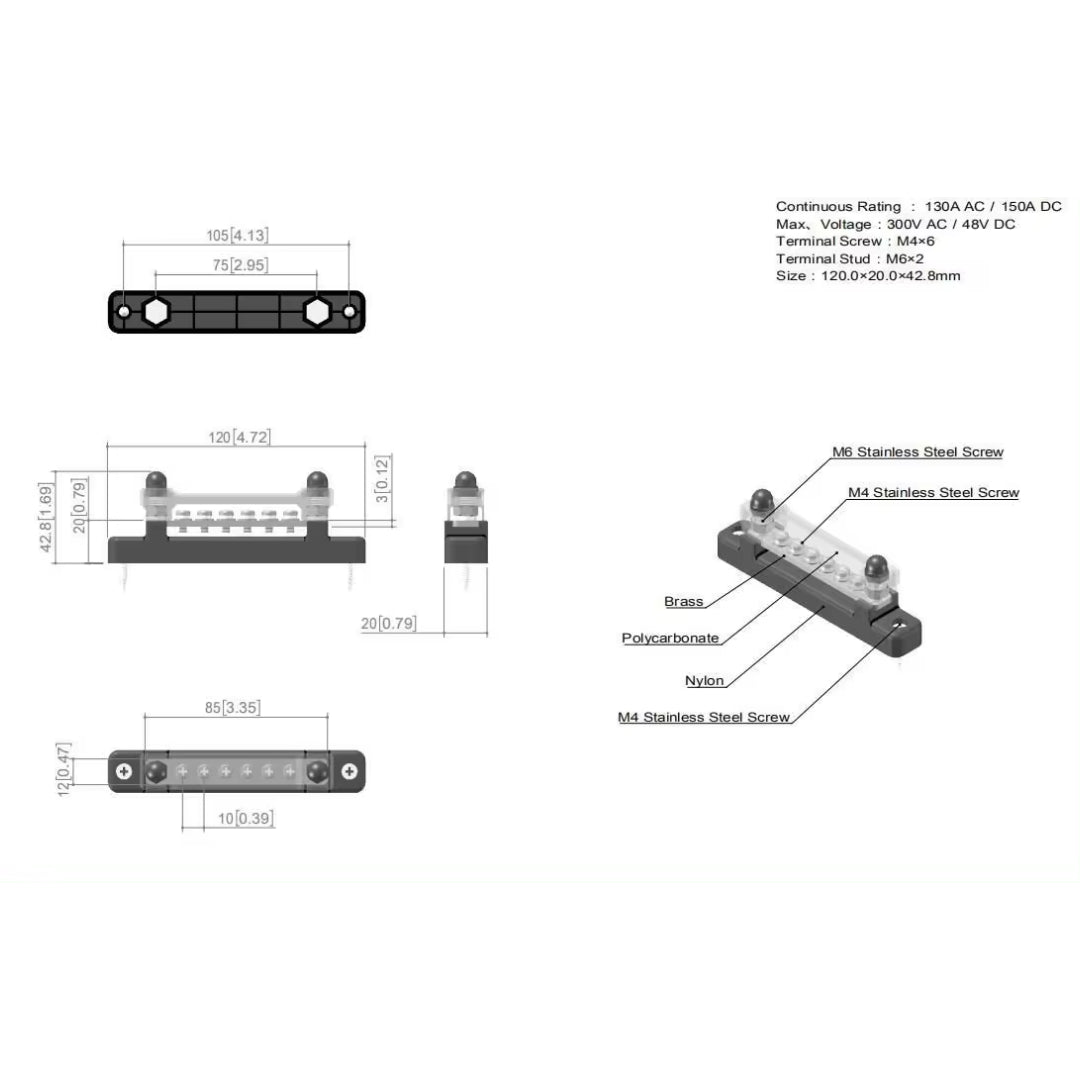

Max voltage: 300V AC/48V DC; Continuous Rating: 130A AC/150A DC.

Terminal Screw: M4 x 6; Terminal Stud: M6 x 2.

Safety Quality: Nickel-plated copper bus bar contact plate has low resistance, maximum conductivity and anti-corrosion protection. High-temperature resistance, abrasion resistance, and safer use. 6 terminal bus bars are ideal for car and marine boat wiring, helping to organize and clean up messy wiring, and suitable for all types of power and ground distribution.

Excellent Accessories: Transparent polycarbonate cover adds extra protection, fireproof and dustproof, and protection from accidental touch. Environmentally friendly flame-retardant nylon base has the best mechanical strength and durability. Stainless steel studs and screws are anti-rust and anti-corrosion, suitable for any environment.

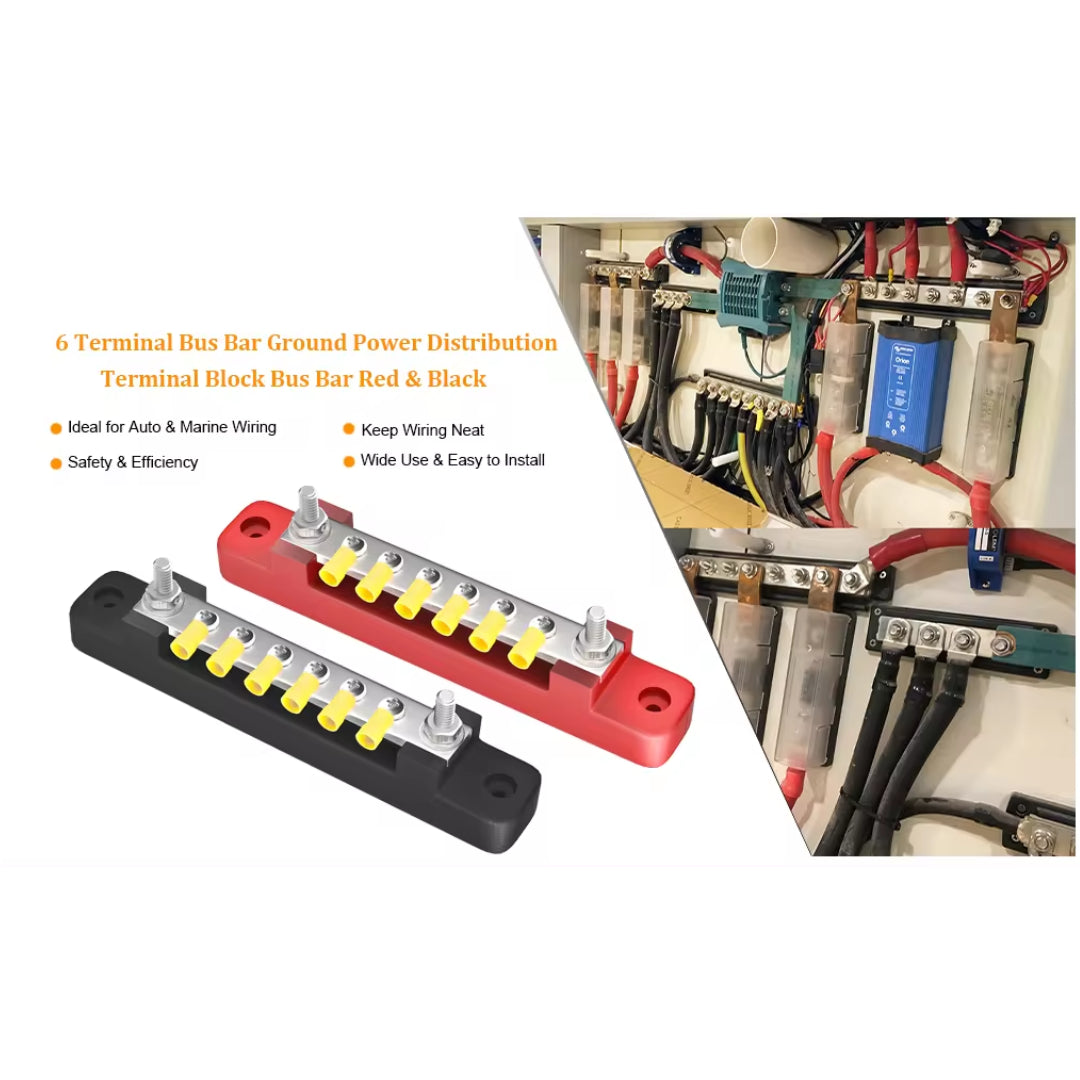

Wide Application: Widely used for cars, pickups, trailers, RVs, motorcycles, recreational vehicles, trucks, Van, caravans, yachts, boats, etc. 6-position single-row busbar provides a neat and clean finish for any installation in your boat or car, perfect for all your electrical wiring projects. Easy to install, use M4 screws to fix it in place.

Aftermarket Auto 6 Terminal BusBar: Ground Power Distribution Terminal Block
