Specifications: - nominal coil voltage: 12 v dc - coil power: 1.8 w - coil resistance: 80 ? - must operate voltage: 6~8 v dc - must release voltage: 0.6~3.6 v dc - maximum applied voltage: 15.6 v dc - contact ratings: no 40a 14v dc - contact resistance: 100mmax (at6vdc 1a) - max switching current: 40a - max switching power: 560 w

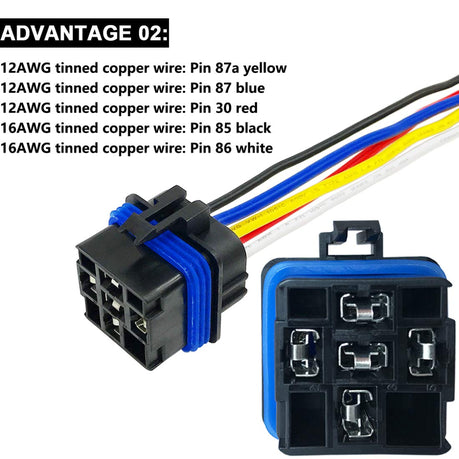

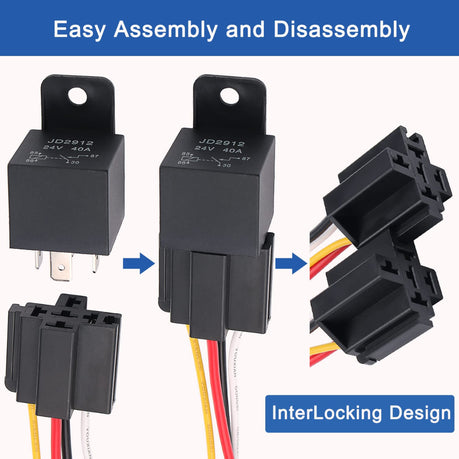

Features: - never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for - 12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water - be careful when plugging the relay into the socket. If you push hard, you will bend the female connector - primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g - spdt relay: it has both normally open and normally closed terminals; terminal 87a is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated
