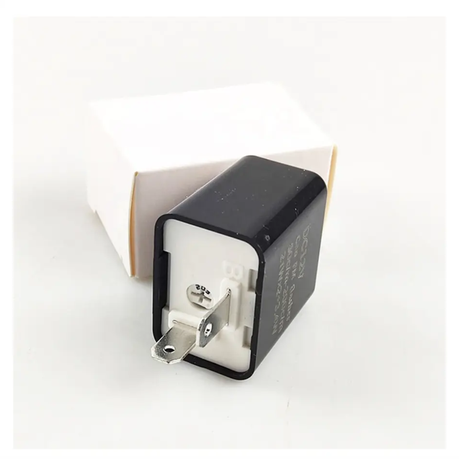

MC Flasher Relay for LED Indicators 12V (2-Pin)

Material: Plastic
Colour: Black

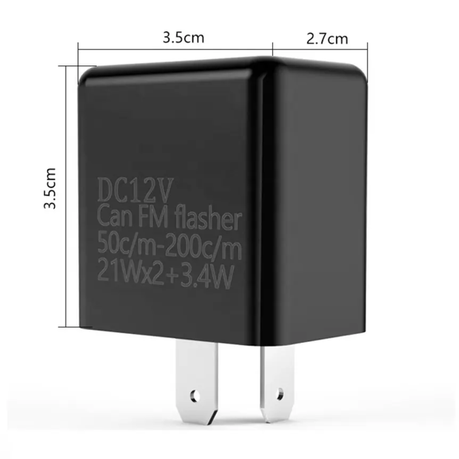

Working voltage: Voltage DC12V, flashing frequency 50c / m-200c / m, working power 21wx2 + 3.4W
Features: the flashing frequency of the turn signal lamp can be adjusted, and advanced SMD patch technology is adopted.

It has short-circuit automatic protection, overload automatic protection and reverse connection automatic protection, which can make the bulb work more stable. (without buzzer)

Usage: it is the third gear frequency. It turns counterclockwise faster and clockwise slower

Installation Tips:
1. The foot position must be properly aligned during installation. If the foot is dislocated, the function of the flasher cannot be realized.
2. If the flasher is changed and the four lights are on at the same time, you need to unplug the direction indicator on the instrument panel
3. Pin B is the input and pin L is the output
For this YS-05 new motorcycle flasher, B is connected to the positive pole of the power supply, l is connected to the positive pole of the lamp, and the negative pole of the lamp is grounded

Features of this flasher:
1. Adjustable frequency 50 times/min - 200 times/min
2. It can be equipped with LED lights, which are common for ordinary lights (now many riders change to LED lights, and there is a flash phenomenon, because the power of LED lights is very low, and ordinary flashers can't carry them. After using this led flasher, the LED flash phenomenon will be solved)
