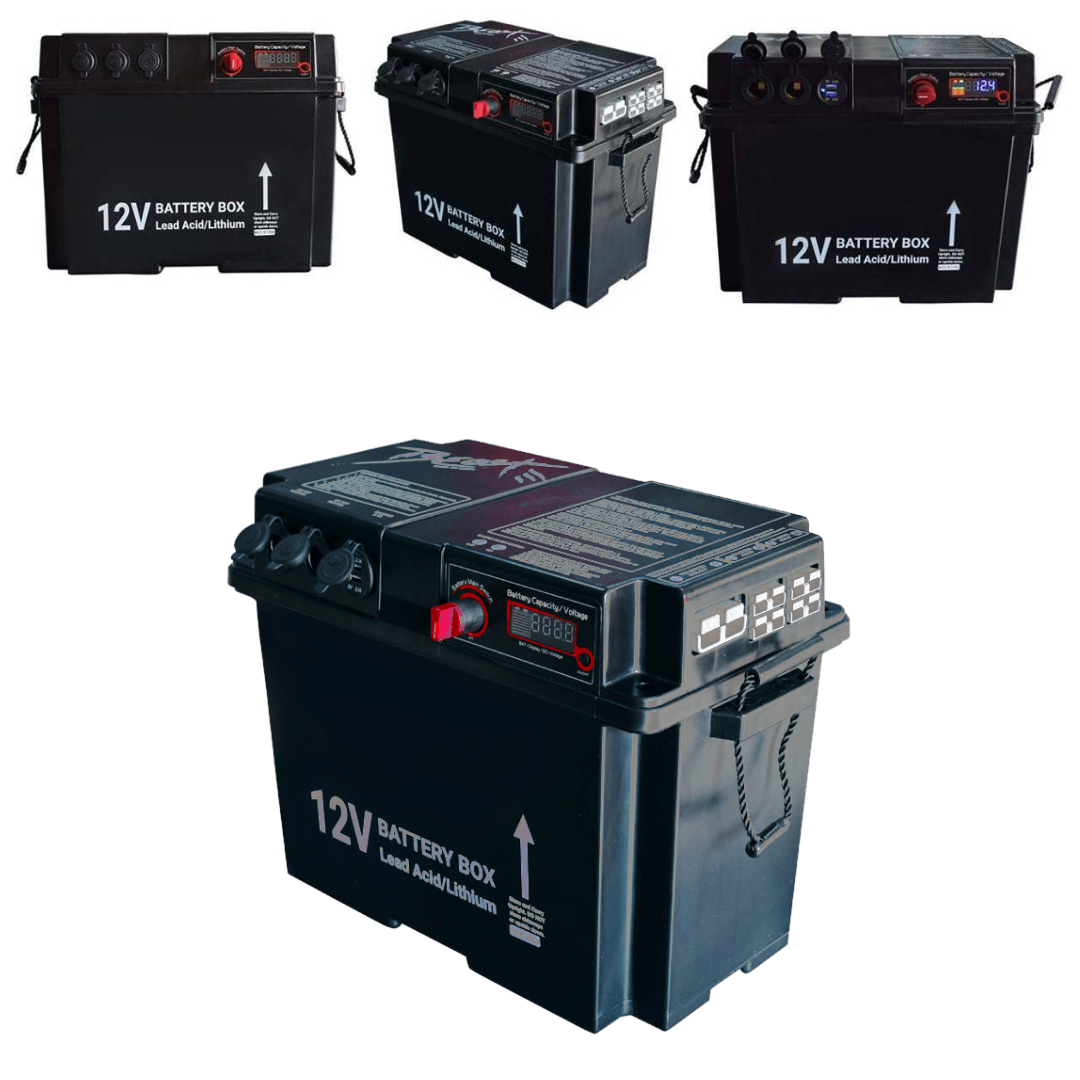

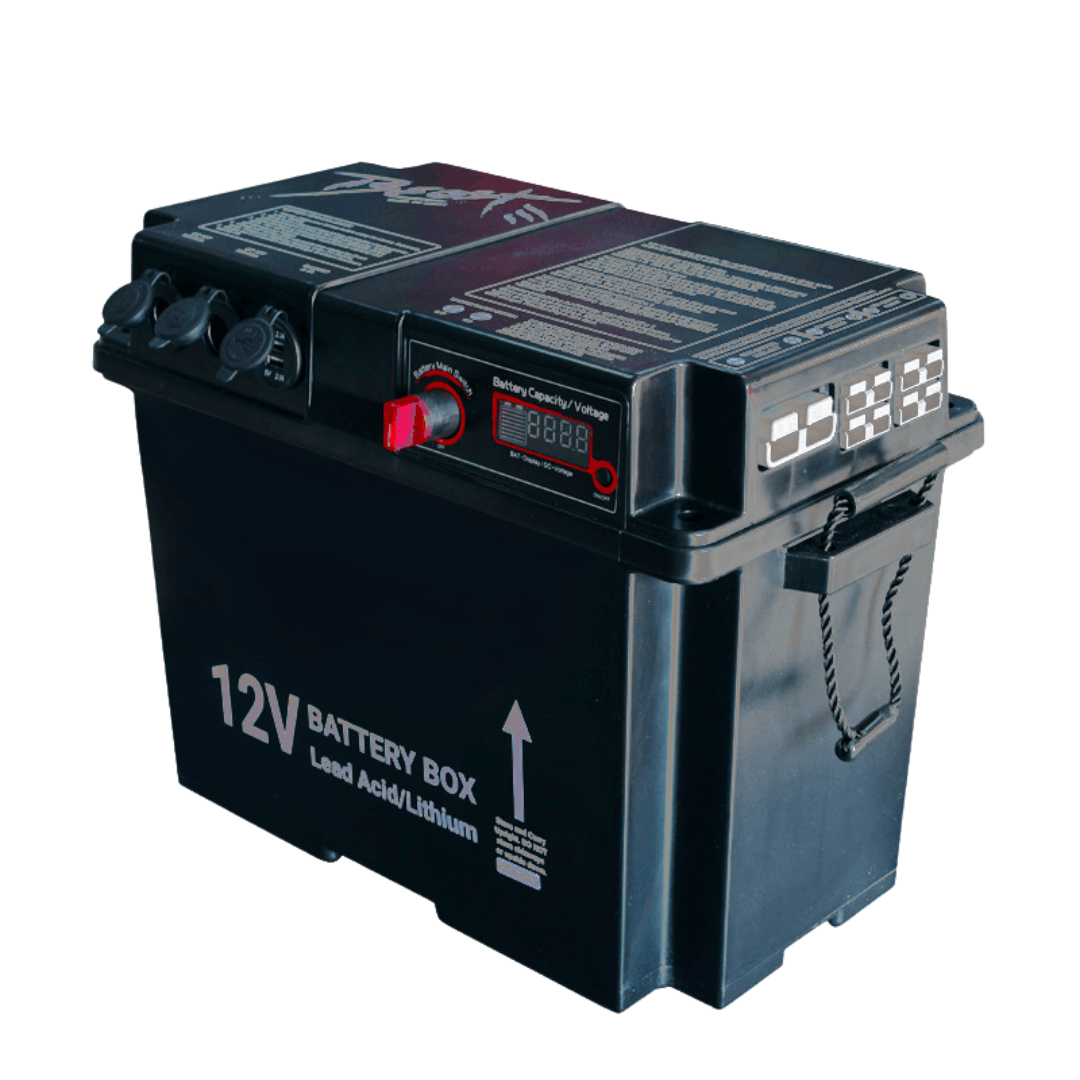

Portable Battery Box Power Station (12V)

-Suitable Battery Types
Most types of 12V rechargeable deep cycle batteries
from 60Ah to 170Ah capacity. This includes AGM,
Wet, Calcium, Gel and Lithium batteries. Within the
maximum battery dimensions.

-Body Materials
ABS plastic

-Charge Method
Charge from any battery charger or solar panels
via the Anderson plug outlets.

-Ports
1x Dual USB output
2x Cigarette plug outputs
4x 50A Anderson plug inputs/outputs
1x 175A Anderson plug output

-Maximum Battery Dimensions
330mm (L) x 175mm (W) x 220mm (H)

-Maximum Battery Weight
35kg

-Cut-out Voltage
12.7V

-Box Dimensions
455mm (L) x 240mm (W) x 330mm (H)

NB: The battery is not Included/ Only Box
Battery charger not included

Battery Box will enable you to use
your Deep Cycle Battery to recharge devices or run
appliances whilst away from main power sources.
This multi-function battery box will turn your deep
cycle battery into a portable power station

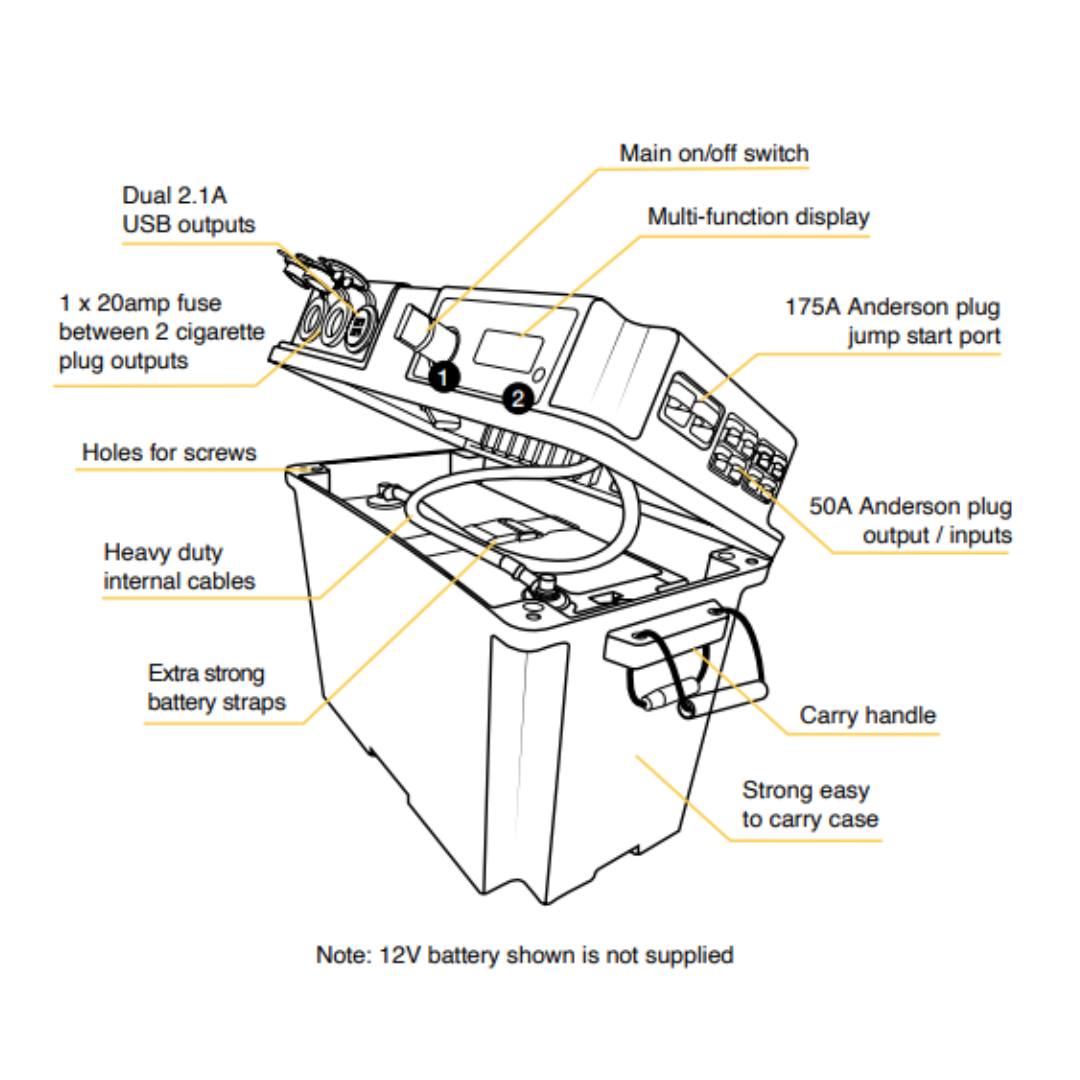

Ensure the Battery Main Switch is in the OFF
position. Place a 12V deep cycle battery inside the
battery box and secure it with the hook & loop strap.
Connect the red lead to the positive terminal on the
battery, then connect the black lead to the negative
terminal. Ensure the nuts on each terminal are firmly
fastened.
Close the lid, ensuring the battery box handles are
outside the box and all leads remain inside. Insert
and tighten the screws in each corner of the box.
Turn the main battery switch 1 clockwise to the
ON position and press the ON/OFF switch 2 to
illuminate the Multi-Function Display if required.
Connect the battery box to your chosen power
source using one of the Anderson plug inputs.
Connect your devices and enjoy the convenience of
having a portable power station with you!

This battery box is able to power many different types
of 12v accessories. It is designed to enable you to
charge the battery while your devices
are being powered.

Please observe the following:
-If the battery voltage drops below 11.0V on
the Multi-Function Display, please immediately
disconnect all devices and charge the battery.

-Ensure you observe the rated output limits of
each port, which is:
- Anderson plug outputs: 50A
- 12V Cigarette outputs: 10A
- USB outputs: 2.1A

-Never insert anything other than a compatible
electrical plug into any of the ports on the
battery box.

-Ensure that the battery box is shut and the
screws are tight before powering any devices.

-Never use the battery box to power medical
equipment.
