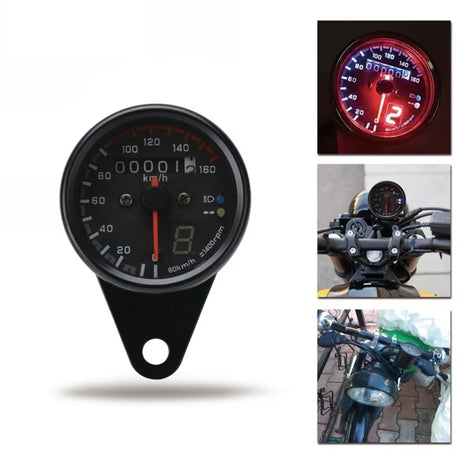

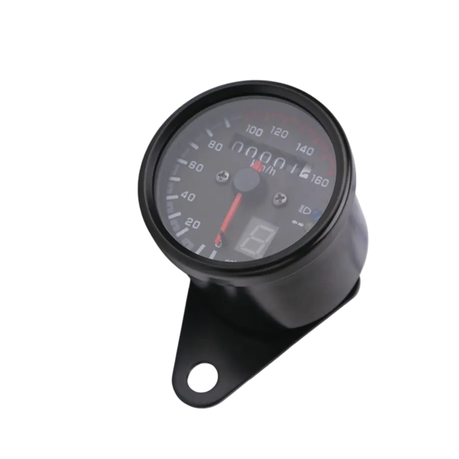

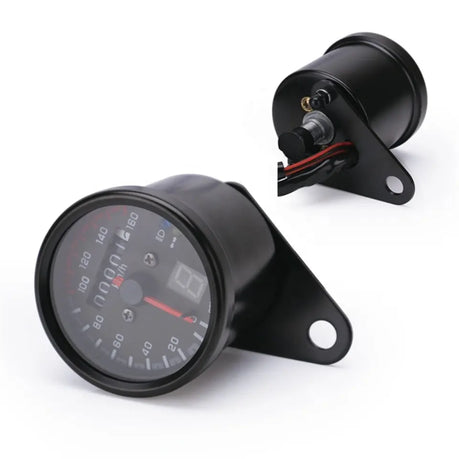

Round Speedometer with Gear Indicator

Specifications:
Material: Metal and Plastic
Voltage: 12V
Shape: Round
Colour: Black Shell and Black inside

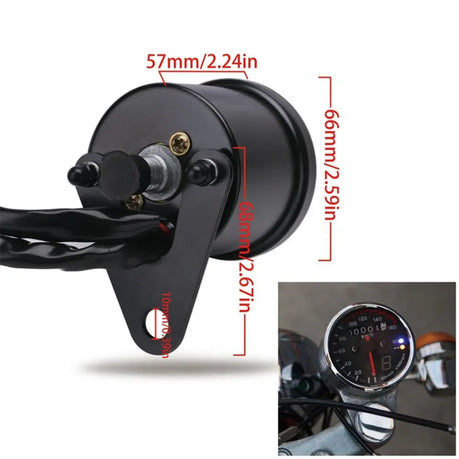

Size: 66(D) mm. x 56mm. (H)
Mounting Hole Diameter: 10mm
Speedometer unit: km/h
Distance measurement unit: KM
Top Speed : 0-160 km/hr.

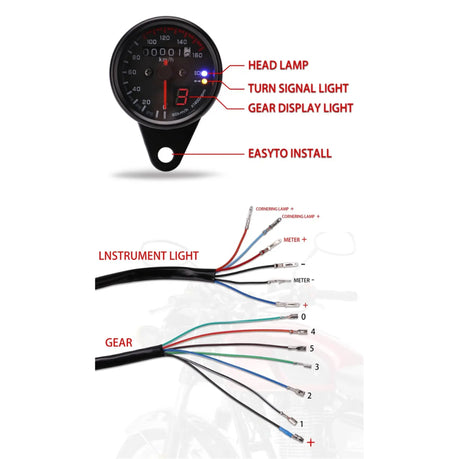

Wiring Diagram Speedometer:
Red-Backlight
Black 1-GROUND (Power Negative)
yellow-turn signal (2 yellow for left-right turn signal)
Blue - headlight indicator
Green - Neutral Gear
Black 2-Negative Neutral Gear

Features:
Easy to install
Indicator Light: Head Lamp, Neutral Lamp, Signal Light
Capacity and practical
Suitable for motorcycles
General Mechanical Speed
Line Interface
Inside small odometer

Wire connection Speedometer:
Red-Backlight
Black 1-GROUND (Power Negative)
Black 2-Negative Neutral Gear
yellow-turn signal
Blue - headlight indicator
Green - Neutral Gear

Gear Indicator:
N-5 file
Follow the lines below
Black with round terminal --- positive, other lines are negative
1 file --- red line
2 files --- blue line
3 files --- green line
4 files --- purple line
5 files --- yellow line
Neutral --- light blue line (show green N)
Red: Neutral N display is green, and the other gear is red
Gears are red

NOTE:
Need to add a gear sensor if your motor did not have an indicator before
If your motorcycle had a Gear Display from the factory, you can refit.
If your motorcycle didn't have a Gear display before, you need to check if the engine has reserved jacks, if it has, you can refit, if didn't have you can not fit it.
No sensor included

Fitment:
For Screw in speed cable
Aftermarket for Motorcycles, custom fitment
Speedometer with 5 Gears and Neutral Indicator
